Qui troverai tutte le parti e i disegni disponibili di “Makita DML810”. Da qui puoi ordinare direttamente tutte le parti desiderate. Molte parti devono essere ordinate dal produttore, a seconda della marca, ciò richiede da una a quattro settimane. Tutte le informazioni che abbiamo sono sul nostro sito web, non possiamo consigliarti su ciò di cui hai bisogno, per questo dovrai restituire la macchina per la riparazione. Nota quanto segue al momento dell’ordinazione:

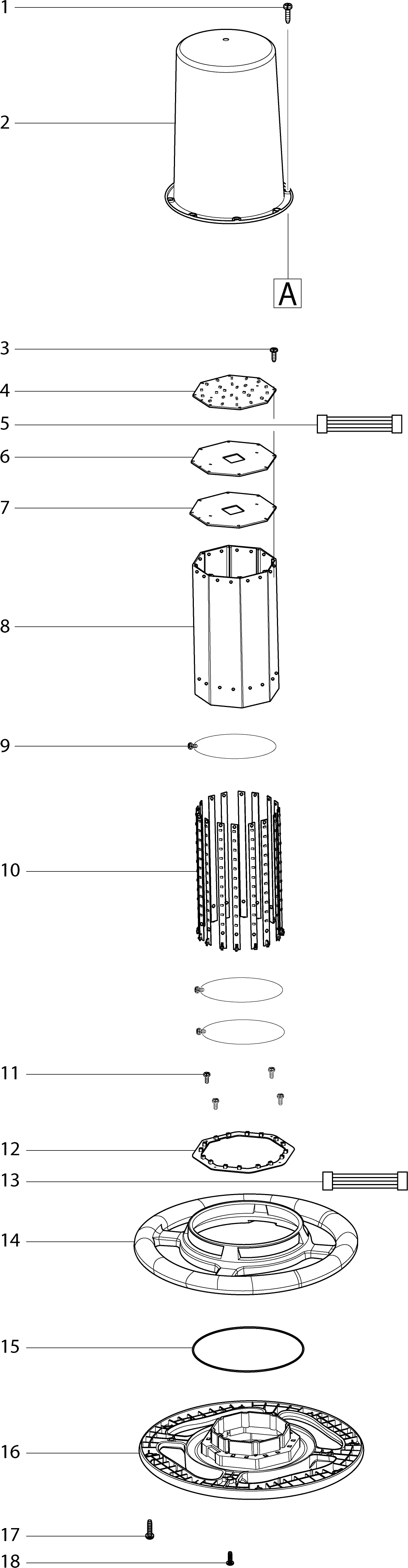

Disegni tecnici di Makita DML810
Elenco parti di Makita DML810
| Pos. | Descrizione | Prezzo IVA escl | Prezzo IVA incl | |
| I prezzi indicati sono comprensivi di IVA | ||||
| Nessuna informazione disponibile, non ordinabile | ||||
| A01 | QY00000081 | |||
| KABEL EU DML810 | ||||
| A01-1 | QY00000093 | 14.30 | 17.45 | |
| Vite a cono 4x20mm DML810 | ||||
| 001 | QY00000001 | 1.20 | 1.46 | |
| Cappuccio LED DML810 | ||||
| 002 | QY00000002 | 23.10 | 28.18 | |
| Vite a cono 3,5x14mm DML810 | ||||
| 003 | QY00000003 | 1.00 | 1.22 | |
| Piastra LED DML810 | ||||
| 004 | QY00000004 | 10.80 | 13.18 | |
| Set cavi 6x300 DML810 | ||||
| 005 | QY00000005 | 3.60 | 4.39 | |
| Scudo termico DML810 | ||||
| 006 | QY00000006 | 2.40 | 2.93 | |
| Tappo di piastra riscaldante DML810 | ||||
| 007 | QY00000007 | 4.80 | 5.86 | |
| Piastra riscaldante DML810 | ||||
| 008 | QY00000008 | 34.10 | 41.60 | |
| Maschio a filettare 3x6mm DML810 | ||||
| 009 | QY00000009 | 1.00 | 1.22 | |
| Piastra LED lunga DML810 | ||||
| 010 | QY00000010 | 4.80 | 5.86 | |
| Maschio a filettare 3x12mm DML810 | ||||
| 011 | QY00000011 | 1.00 | 1.22 | |
| Circuito LED DML810 | ||||
| 012 | QY00000012 | 19.80 | 24.16 | |
| Set di cavi 6x1000 DML810 | ||||
| 013 | QY00000013 | 4.80 | 5.86 | |
| Maniglia superiore DML810 | ||||
| 014 | QY00000014 | 11.00 | 13.42 | |
| Anello O DML810 | ||||
| 015 | QY00000015 | 4.80 | 5.86 | |
| Maniglia inferiore DML810 | ||||
| 016 | QY00000016 | 13.20 | 16.10 | |
| Vite a cono 4x20mm DML810 | ||||
| 017 | QY00000001 | 1.20 | 1.46 | |
| Vite a cono 3,5x14mm DML810 | ||||
| 018 | QY00000017 | 1.00 | 1.22 | |
| Cappuccio dell'interruttore DML810 | ||||
| 019 | QY00000018 | 9.60 | 11.71 | |
| Cappuccio dell'indicatore DML810 | ||||
| 020 | QY00000019 | 1.20 | 1.46 | |
| Unità di indicazione DML810 | ||||
| 021 | QY00000020 | 6.00 | 7.32 | |
| Circuito di commutazione DML810 | ||||
| 022 | QY00000021 | 3.60 | 4.39 | |
| Vite a cono 3,5x14mm DML810 | ||||
| 023 | QY00000017 | 1.00 | 1.22 | |
| Interruttore DML810 | ||||
| 024 | QY00000022 | 8.40 | 10.25 | |
| Set di cavi 10x850 DML810 | ||||
| 025 | QY00000023 | 4.80 | 5.86 | |
| Vite a cono 3,5x14mm DML810 | ||||
| 026 | QY00000017 | 1.00 | 1.22 | |
| Vite conica 5x20mm DML810 | ||||
| 027 | QY00000024 | 1.00 | 1.22 | |
| Alloggiamento DML810 | ||||
| 028 | QY00000073 | 78.10 | 95.28 | |
| Vite a sfioro 3x8mm DML810 | ||||
| 029 | QY00000026 | 1.00 | 1.22 | |
| Riflettore DML810 | ||||
| 030 | QY00000027 | 2.40 | 2.93 | |
| Alloggiamento DML810 | ||||
| 031 | QY00000073 | 78.10 | 95.28 | |
| Chiusura DML810 | ||||
| 032 | QY00000029 | 2.40 | 2.93 | |
| Spina 2,5x73mm DML810 | ||||
| 033 | QY00000030 | 1.00 | 1.22 | |
| Spina 4x75mm DML810 | ||||
| 034 | QY00000031 | 1.00 | 1.22 | |
| Coperchio della batteria DML810 | ||||
| 035 | QY00000032 | 1.00 | 1.22 | |
| Coperchio della batteria DML810 | ||||
| 036 | QY00000033 | 8.40 | 10.25 | |
| Perno 2,5x52,5mm DML810 | ||||
| 037 | QY00000034 | 1.00 | 1.22 | |
| Base del coperchio della batteria DML810 | ||||
| 038 | QY00000035 | 2.40 | 2.93 | |
| Maschio a filettare 3x12mm DML810 | ||||
| 039 | QY00000036 | 1.00 | 1.22 | |
| Guarnizione del coperchio della batteria DML810 | ||||
| 040 | QY00000037 | 8.40 | 10.25 | |
| Cavo DML810 P | ||||
| 041 | QY00000038 | 8.40 | 10.25 | |
| Nessuna informazione disponibile, non ordinabile | ||||
| 041-1 | QY00000092 | |||
| Coperchio della piastra inferiore DML810 | ||||
| 042 | QY00000039 | 3.60 | 4.39 | |
| Scheda di circuito DML810 | ||||
| 043 | QY00000040 | 28.60 | 34.89 | |
| Tappo di copertura DML810 | ||||
| 044 | QY00000041 | 1.20 | 1.46 | |
| Maschio a filettare 3x12mm DML810 | ||||
| 045 | QY00000011 | 1.00 | 1.22 | |
| Set di cavi 400 DML810 | ||||
| 046 | QY00000042 | 3.60 | 4.39 | |
| Guarnizione DML810 | ||||
| 047 | QY00000043 | 3.60 | 4.39 | |
| Compartimento della batteria sotto DML810 | ||||
| 048 | QY00000044 | 10.80 | 13.18 | |
| Vite a cono 4x20mm DML810 | ||||
| 049 | QY00000001 | 1.20 | 1.46 | |
| Circuito principale DML810 | ||||
| 050 | QY00000045 | 39.60 | 48.31 | |
| Vite a cono 3,5x14mm DML810 | ||||
| 051 | QY00000017 | 1.00 | 1.22 | |
| Stazione DML810 | ||||
| 052 | QY00000046 | 6.00 | 7.32 | |
| Set di cavi 300 DML810 | ||||
| 053 | QY00000047 | 6.00 | 7.32 | |
| Scatola del controller DML810 | ||||
| 054 | QY00000048 | 3.60 | 4.39 | |
| Vite a cono 3,5x14mm DML810 | ||||
| 055 | QY00000017 | 1.00 | 1.22 | |
| Piastra della stazione di batteria DML810 | ||||
| 056 | QY00000049 | 2.40 | 2.93 | |
| Vite a cono 3,5x14mm DML810 | ||||
| 057 | QY00000017 | 1.00 | 1.22 | |
| Maniglia superiore DML810 | ||||
| 058 | QY00000050 | 9.60 | 11.71 | |
| Vite conica 5x20mm DML810 | ||||
| 059 | QY00000024 | 1.00 | 1.22 | |
| Maniglia inferiore DML810 | ||||
| 060 | QY00000051 | 10.80 | 13.18 | |
| Vite conica 5x20mm DML810 | ||||
| 061 | QY00000024 | 1.00 | 1.22 | |
| Uscita AC DML810 | ||||
| 062 | QY00000052 | 4.80 | 5.86 | |
| Maschio a filettare 3x12mm DML810 | ||||
| 063 | QY00000036 | 1.00 | 1.22 | |
| Cappuccio presa AC DML810 | ||||
| 064 | QY00000071 | 2.40 | 2.93 | |
| AC INLAAT D ML010G | ||||
| 065 | QY00000067 | 13.20 | 16.10 | |
| Scatola di passaggio DML810 | ||||
| 066 | QY00000055 | 2.40 | 2.93 | |
| Set di alloggiamenti DML810 | ||||
| 067 | QY00000056 | 3.60 | 4.39 | |
| Telaio socket DML810 | ||||
| 068 | QY00000057 | 2.40 | 2.93 | |
| Preso d'alternatore in DML810 | ||||
| 069 | QY00000058 | 1.20 | 1.46 | |
| Maschio a filettare 3x12mm DML810 | ||||
| 070 | QY00000036 | 1.00 | 1.22 | |
| Coperchio della presa DML810 | ||||
| 071 | QY00000059 | 6.00 | 7.32 | |
| Casa bassa DML810 | ||||
| 072 | QY00000060 | 23.10 | 28.18 | |
| Vite conica 5x20mm DML810 | ||||
| 073 | QY00000024 | 1.00 | 1.22 | |
| Vite conica 5x20mm DML810 | ||||
| 074 | QY00000024 | 1.00 | 1.22 | |
| SLUITRING 5MM DML810 | ||||
| 075 | QY00000061 | 1.00 | 1.22 | |
| Peso DML810 | ||||
| 076 | QY00000062 | 72.60 | 88.57 | |
| Cappuccio di peso DML810 | ||||
| 077 | QY00000063 | 16.50 | 20.13 | |
| TAPSCHR 5X20MM DML810 | ||||
| 078 | QY00000064 | 1.00 | 1.22 | |
| Maschio a filettare 3x12mm DML810 | ||||
| 079 | QY00000011 | 1.00 | 1.22 | |
